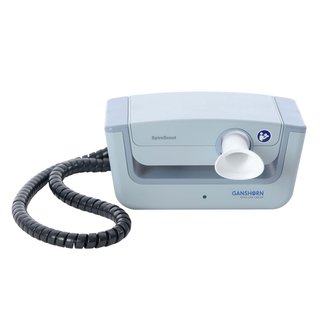

GANSHORN SpiroScout

The SpiroScout is a complete lung function laboratory based on the unique ultrasonic measurement principle of GANSHORN. It enables the exact determination of all spirometric parameters.

As the first of its kind the SpiroScout simultaneously measures flow and gas density providing all the necessary information about the volume and gas exchange from one single measurement.

Features

  • No volume calibration and no warm-up time necessary
  • Real-time automatic BTPS correction, drift free, high accuracy
  • High-precision spirometry due to direct flow measurement
  • Sensor is not influenced by humidity, barometric pressure and contamination
  • Extremely high accuracy for low flows
  • No cleaning and maintenance needed
  • Used with ScoutTubes, the hygienic mouthpiece for single-patient use
  • The ScoutTubes are climate-neutral. Please check our declaration by entering our tracking number 01-20-162037 in the search bar on www.myclimate.org
  • Different options available such as rhinomanometry, oscillatory resistance, capnovolumetry, emphysema test and dead space analysis
designed_manufactured_eu

SCHILLER reserves the right to make changes in design, specifications and features shown, or discontinue the product described at any time without notice or obligation. Images may be representative. Device availability in your market is subject to regulatory approval.

Ultrasonic Spirometry

Ultrasonic Spirometry is a quick measurement method for direct and precise flow determination.

This ultrasound transit-time flow measurement method (TrueFlow) works with a high resolution of 1,000 measurement points per second, so that no substitute parameters for flow (e.g. differential pressure, temperature or turbine) are necessary.

Within the breathing tube ScoutTube, two diagonally opposing piezo-elements send and receive alternatively ultrasonic waves. Without any flow the transit time of the ultrasound waves is the same in both directions. Flow, moving the air inside the tube, will accelerate the waves in one direction,  and slow them down in the other. The higher the difference between go and return, the higher the flow. All other factors (gas properties, humidity, temperature) are the same for both directions and cancel each other out.

Features

  • Easy and quick changing of the disposable breathing tube ScoutTube without the assembly of several pieces.
  • The high resolution of 1,000 measurement points per second is a substantial condition for reliability
  • No fluctuation of measurement values due to changing ambient conditions or breathing humidity.
  • Calibration free during running operation
  • No erroneous measurements due to wrongly or non calibrated pneumotachs
  • Determination of flow and all derived parameters as volume or also the resistance during the Bodyplethysmography measurement.
